Product Introduction

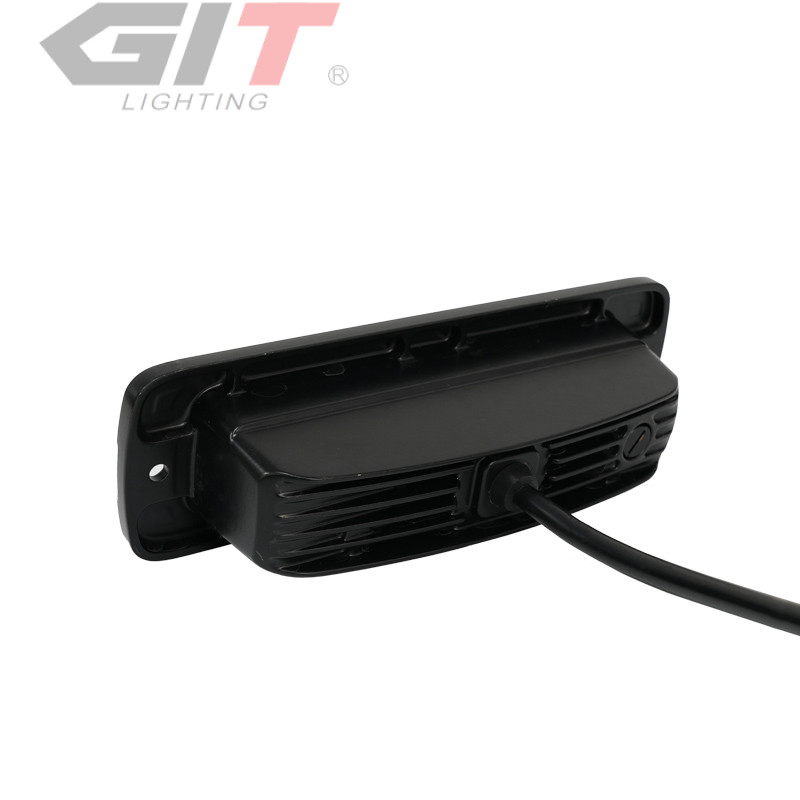

Our GT16219A 6inch flush mount bezel-less led work light, adopts 6pcs*10W high intensity LED chips with wide and long range light beam. Equipped with unscratched PC and Bezel-less cover lens,which is infinite light transmission. Durable aluminum alloy housing and oversized heat sinks make the heat disappear quickly. UV-resistance sand black power won’t fade 3years.
With improved cable sealing hole, great performance of waterproof(IP68 rating), dust-proof, shockproof, fearless to work in heavy rain and any harsh conditions. Adjustable 3mm thickness 304#stainless U shape bracket makes changing direction of light beam easily. Available with a cleverly designed low profile mounting bracket or sleek flush mount. Fits for off road SUV ATV UTV Truck Marine Boat, etc.
Technical Specification
| Ginto Part No. | GT16219A | Mounting Bracket | Flush Mount |
| Max Power | 60W | Bracket Material | / |
| Leds | 6Pcs*10W | Lens Material | 3mm Hardening PC Lens |
| Color Temperature | 5700K | Housing Material | ADC12 Die-casting Aluminum |
| AMP Draw | 2.8A@12V, 1.4A@24V | Housing Powder Coating | Semi-gloss Black |
| Operating Voltage | 10-30V DC | Breather Vent Plug | M5 |
| Candela | Flood: 8776 cd, Spot: 100497 cd | Shape | Rectangle |
| Operating Temperature | -40~+60℃ | Standard Electrical Connection | Bare Wire(Deutsch connector is available) |
| Beam Angel | Flood: 54°, Spot: 34° | Standard Cable Length | 400mm |
| Lifetime | 50,000+hours | Waterproof Rating | IP68/IP69K |
| Beam Pattern | Flood, Spot | EMC Protection | CISPR23 C3 |
| 1 Lux Reading | Flood:1lux@98m, Spot:1lux@312m | Certification | ECE R10, CE, RoHS, IP68 |
| Theoretical Lumen | 4500lm | Net Weight | 0.425KGS/SET |
| Effective Lumen | 3120lm | Package Weight | 5.85KG |
| Size | 7.68″*2.44″*2.12″/195*62*54mm | Package Standard | 10SETS/CTN |
