Product Introduction
Our GT13102A 4.8 inch 24w square led work lamp, adopts high intensity 6PCS*4W Cree XBD LED chips, emits 1560 raw lumen of crystal white illumination, super bright white light dispels darkness, ensuring safety of your trip. It is the most powerful 3inch cube light on the market.
Compact whole design, built with UV resistant imported PC lens, semi-glossy black power coated die-cast aluminum alloy cooling fins effectively extend the lifespan to over 30, 000 hours. Equipped with 304#Stainless steel adjustable mounting bracket
This model is ideal for heavy duty equipment applications such as tractor, excavator, truck, forklift, forestry equipment, military vehicles, agricultural equipment and so on.
Detail Display
Technical Specification
| Ginto Part No. | GT13102A | Mounting Bracket Options | Mounting bracket |
| Max Power | 12W | Bracket Material | 304# Stainless Steel |
| Leds | 6Pcs*4W Cree XBD | Lens Material | PC Lens |
| Color Temperature | 6000K | Housing Material | 6063 Aluminum |
| AMP Draw | 0.98A@12V, 0.49A@24V | Housing Powder Coating | Semi Gloss Black |
| Operating Voltage | 10-30V DC | Shape | Square |
| Operating Temperature | —40~+60℃ | Standard Electrical connection | Deutsch Connector |
| Lifetime | +30,000 hours | Standard Cable Length | 40CM |
| Beam Pattern | Flood Beam, Spot Beam | Waterproof Rating | IP68 |
| 1 Lux Reading | Flood Beam@61m, Spot beam@101m | EMC Protection | CISPR23 C3 |
| Theoretical Lumen(lm) | 1560lm | Certification | CE, RoHs, IP68 |
| Effective Lumen(lm) | 720lm | Net Weight | 0.69 KGS/SET |
| Size(inch) | 4.8″*3.62″*3.14″ | Package Standard | 20 SETS/CTN |
| Size(mm) | 122mm*92mm*80mm | Carton Size | 53 x 26.5 x 29cm |

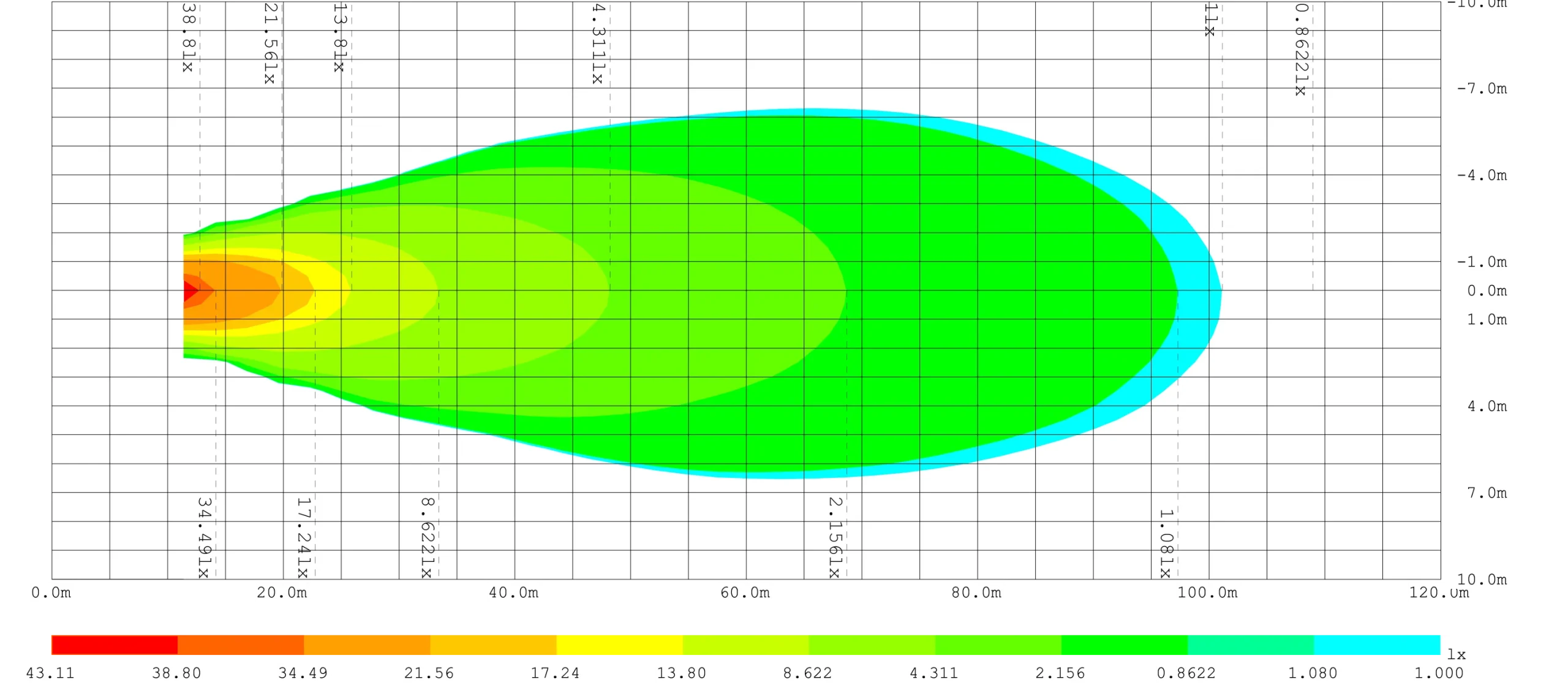

Spot Beam
